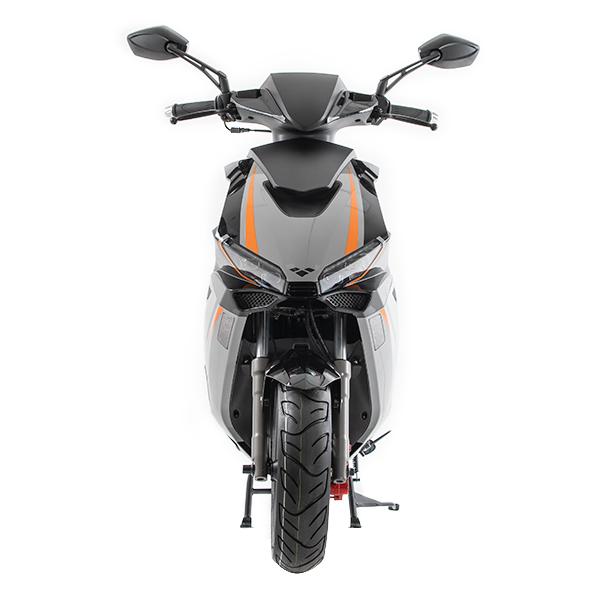

Lexmoto Diablo 50

Lexmoto Diablo 50 Euro 5

Lexmoto Diablo 50 Euro 5

The Lexmoto Diablo provides a sports scooter with exceptional styling with a build quality that far surpasses its price tag. The Lexmoto Diablo provides the ultimate in modern styling with a price that is accessible to all riders. The model has a front and rear disc setup with combined braking and comfortable suspension which affords bump soaking and nimble handling. With striking LED headlight features and a digital display the Diablo continues to illuminate the night-time streets.

**Please note, while every effort is made to ensure images are kept up to date, some models can change without prior notice. Images are for illustrative purposes but will give a fairly accurate idea of what the product will look like. **

Lexmoto Diablo 50 Finance – APPLY HERE

Finance Calculator

[repayments]

Representative example: borrowing £3000 over 36 Months with a representative APR of 24.9%, the amount payable would be £115.21 a month, with a total cost of credit of £1,147.56 and a total amount payable of £4,147.56.

*This finance calculator is for illustration purposes only. The actual interest rate you receive from the finance provider will depend on your individual circumstances. The above example excludes any fees that may be charged by the lender.

Video

*please note, the video shown may be a previous model and should not be considered the latest model. Usually there will be only minor changes if any. If in doubt, please contact us.

Warranty Information

Service Schedule

In order to maintain the warranty, vehicles are required to be serviced at the correct intervals. Failure to do so will render the warranty void. It is highly recommend that the user has the vehicle maintained to ensure increased safety & vehicle longevity. It is possible to buy service kits here if you prefer to maintain your vehicle yourself however your warranty will become void unless a VAT registered garage carries out each service and validates this by filling in the service book accordingly.

50cc Scooters Insurance Discount Codes

Cheap motorbike insurance seems to be a bit of a hit or miss, however we have a top tip to get the best price possible and then a bit more. If you are lazy like 90% of the population using a comparison website will be your ‘go to’. But, if you actually call any of the insurance companies below you will be guaranteed to get a better deal. Insurance companies have to pay the comparison sites a big commission and they can then pass that discount onto you instead. If you use the discount code you will be not only getting yourself cheaper motorcycle insurance, but we get a little something too… win win for everyone, what have you got to lose? We have included the telephone numbers and reference numbers below, its just a simple phone call.

• Lexham Insurance (discount code auto fills when using the link – opens new tab)
• BikeSure Insurance (discount code auto fills when using the link – opens new tab)

Lexmoto Diablo 50 Specifications

Lexmoto Diablo 50 Euro 5 Specifications
Performance
Max Speed :
45 kph
Max Power :
2.2kW @ 7500rpm
Engine and Transmission
Engine Size :
49 cc
Engine Type:
Single Cylinder, 4 Stroke, Air Cooled
Gear Type :
Twist and Go
Drive Type :
Belt
Start System :
Electric / Kick Start
Wheel, Suspension and Brakes
Front Tyre :
120/70-12
Rear Tyre :
120/70-12
Tyre Brand :
CST
Tyre Model :
Tubeless
Front Suspension :
Telescopic Forks
Front Brake :
Hydraulic Disc
Rear Brake :
Hydraulic Disc
Dimensions
Wheelbase :
1295 mm
Overall Length :
1825 mm
Overall Width :
690 mm
Overall Height :
1140 mm
Lexmoto Diablo 50 Euro 5 Technical Data
Model Information
Length
1825 mm
Fuel Tank Capacity
6.5 l
Width
690 mm
Mass in Running Order
96 kg
Unladen Weight
171 kg
Max. Laden Mass
256 kg
Wheelbase
1295 mm
Power Output
Max. Power
2.2@7500 kW @ RPM
Max. Torque
3@6250 Nm @ RPM
Max. Speed
45 Km/h
Engine Settings
Capacity
49 cc
Stroke
4 Stroke
Valves per cylinder
2
Cylinders
Single
Cooling
Air Cooled
Idle Speed
2100 min-1
Timing and Ignition
Spark Plug
CR6HSA
Spark Plug Gap
0.7-0.8mm
Fuel System
Main Jet
90
Pilot Jet
33
Carburettor Brand
Dellorto
Valve Clearances
Exhaust Valve (Metric)
0.08-0.12 mm
Inlet Valve (Metric)
0.03-0.07 mm
Tyre Pressures
Front
25 psi
Rear
29 psi
Front Tyre
12/70-12
Rear Tyre
120/70-12
Front Tyre Pressure With Pillion
29 psi
Rear Tyre Pressure With Pillion
32 psi
Fluids
Engine Oil Viscosity
15w/40
Engine Oil Volume
800-1000 ml
