AJS Cadwell 125

AJS Cadwell 125

The AJS Cadwell will take you back to a time where motorcycles were built for fun and excitement, where British bikes ruled and rock n roll was the language of youth. The Cadwell beautifully recaptures the spirit of the motorcycles of the 50’s and 60’s where owners would modify their bikes into the style of Café Racers.
The AJS Cadwell feels at home in the city or out on the open road. Every twist and turn, to the next cafe, will bring a smile to your face and a feeling of excitement inside you. You will fall in love with the Cadwell.

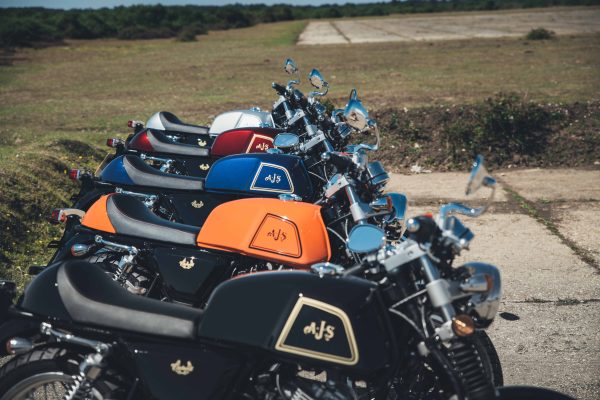

Available in five great colour options. Silver Fox, Jet Black, Blazing Orange, Metallic Blue, Metallic Dark Red

Key Features
17 year old learner legal
Ultra smooth Balance Shaft, 4 stroke engine
Centre stand and side stand fitted
Excellent fuel economy
Stainless steel exhaust system
Low fuel level warning light

Maintenance Information
Tyre pressure – front: 33 psi solo or with passenger (not to exceed 36psi)
Tyre pressure – rear: 33 psi solo or with passenger (not to exceed 36psi)
Tappet clearance In: 0.15mm
Tappet clearance Ex: 0.15mm
Engine oil type: 10w40 Class API, SG (Silkolene Super 4)
Engine oil quantity: 1.0 – 1.1L (check on dip stick)
Spark plug type: NGK CR6HS (x1)
Air filter part number: 1690100-050000
Oil filter part number: Gauze type, clean and replace
Front fork oil capacity: 220cc (each leg)
Front fork oil type: RSF 7.5

Torque Settings:
Front axle nut 45Nm
Rear axle nut 65Nm
Steering stem nut 30Nm
Swinging arm axle nut 60Nm
Rear sprocket nut 30Nm
Cylinder head bolt M8 x 1.25 22Nm
Spark plug M10 x 1.00 12.5Nm
Magneto rotor 70Nm

General 8.8 or 9.8 fasteners:
M6 10Nm
M8 25Nm
M10 50Nm
M12 85Nm

**Please note, while every effort is made to ensure images are kept up to date, some models can change without prior notice. Images are for illustrative purposes but will give a fairly accurate idea of what the product will look like. **

AJS Cadwell 125 Finance – APPLY HERE

Finance Calculator

[repayments]

Representative example: borrowing £3000 over 36 Months with a representative APR of 24.9%, the amount payable would be £115.21 a month, with a total cost of credit of £1,147.56 and a total amount payable of £4,147.56.

*This finance calculator is for illustration purposes only. The actual interest rate you receive from the finance provider will depend on your individual circumstances. The above example excludes any fees that may be charged by the lender.

Video

*please note, the video shown may be a previous model and should not be considered the latest model. Usually there will be only minor changes if any. If in doubt, please contact us.

Warranty Information

Service Schedule

In order to maintain the warranty, vehicles are required to be serviced at the correct intervals. Failure to do so will render the warranty void. It is highly recommend that the user has the vehicle maintained to ensure increased safety & vehicle longevity. It is possible to buy service kits here if you prefer to maintain your vehicle yourself however your warranty will become void unless a VAT registered garage carries out each service and validates this by filling in the service book accordingly.

125cc Motorcycles, Insurance Discount Codes

Cheap motorbike insurance seems to be a bit of a hit or miss, however we have a top tip to get the best price possible and then a bit more. If you are lazy like 90% of the population using a comparison website will be your ‘go to’. But, if you actually call any of the insurance companies below you will be guaranteed to get a better deal. Insurance companies have to pay the comparison sites a big commission and they can then pass that discount onto you instead. If you use the discount code you will be not only getting yourself cheaper motorcycle insurance, but we get a little something too… win win for everyone, what have you got to lose? We have included the telephone numbers and reference numbers below, its just a simple phone call.

• Lexham Insurance (discount code auto fills when using the link – opens new tab)
• BikeSure Insurance (discount code auto fills when using the link – opens new tab)

AJS Cadwell 125 Specifications

Key Features
17 year old learner legal
Ultra smooth Balance Shaft, 4 stroke engine
Centre stand and side stand fitted
Excellent fuel economy
Stainless steel exhaust system
Low fuel level warning light

Technical Details (Euro 5)
Engine type: 4-stroke, OHC, air cooled, single cylinder
Displacement: 124cm³
Bore x Stroke: 54 x 54mm
Compression Ratio: 10:1
Max. power: 7.4kW @ 9,000 rpm
Max. Torque: 9.5Nm @ 6,500 rpm
Tank capacity: 11.2L
Fuel type: Unleaded or E5 petrol
Transmission: five speed, chain drive
Unladen Mass: 113kg
Max laden mass: 274kg
Max load: 150kg
Starter: electric and kick
Generator nominal output: 100VA
Battery: 12v 9Ah
Brakes: 300mm front single disc/ 210mm rear disc (Combined Braking System)
Wheel rims: Front: 17 x MT2.5 Rear: 17 x MT3.50
Tyres: Front: 110/70-17 Rear: 130/70-17
Front sprocket: 428 14T
Rear Sprocket: 428 45T
Seat height: 740mm
Length: 2040mm
Width: 720mm
Height: 1060mm
Wheelbase: 1330mm
Odometer: km
Speedometer: Dual marked
Max Speed: (approx): 60mph
Fuel consumption: (as recorded on the COC) 120mpg
Maintenance Information
Tyre pressure – front: 33 psi solo or with passenger (not to exceed 36psi)
Tyre pressure – rear: 33 psi solo or with passenger (not to exceed 36psi)
Tappet clearance In: 0.15mm
Tappet clearance Ex: 0.15mm
Engine oil type: 10w40 Class API, SG (Silkolene Super 4)
Engine oil quantity: 1.0 – 1.1L (check on dip stick)
Spark plug type: NGK CR6HS (x1)
Air filter part number: 1690100-050000
Oil filter part number: Gauze type, clean and replace
Front fork oil capacity: 220cc (each leg)
Front fork oil type: RSF 7.5

Torque Settings:
Front axle nut 45Nm
Rear axle nut 65Nm
Steering stem nut 30Nm
Swinging arm axle nut 60Nm
Rear sprocket nut 30Nm
Cylinder head bolt M8 x 1.25 22Nm
Spark plug M10 x 1.00 12.5Nm
Magneto rotor 70Nm

General 8.8 or 9.8 fasteners:
M6 10Nm
M8 25Nm
M10 50Nm
M12 85Nm
